Gira
Ongoing Project
Gira is an assistive kitchen system that enables people with limited motor function to perform strenuous kitchen tasks, including carrying, draining, washing, and transferring food from heavy pots, pans and bowls.
Gira’s aim is to allow an aging population to remain independent in their kitchens, and by extension their homes, as they become more likely to experience symptoms of motor and mobility related impairments.
Kitchen Mapping // Immersive Experience
Kitchen Action Pain Points
In order to identify the most strenuous kitchen activities for the hands and wrists, I immersed and recorded myself in the process of cooking two meals, from start to finish, including washing the dishes.
A (More) Universal Kitchen Tool for the Motor Impaired

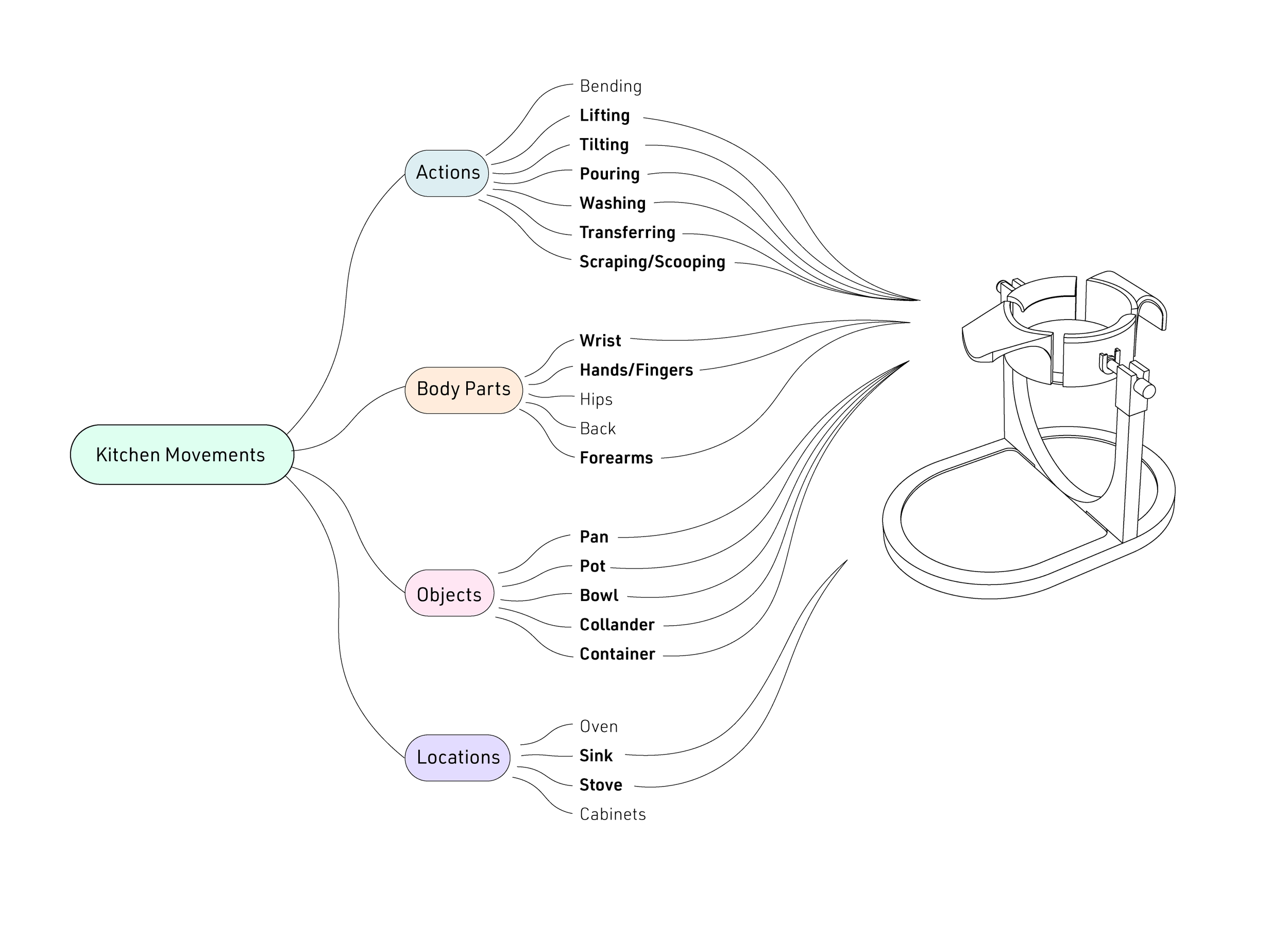

Defining the System
This framework consists of actions, body parts, objects, and locations logged during the kitchen mapping exercise. This data was then used to set the requirements for the product + design system.

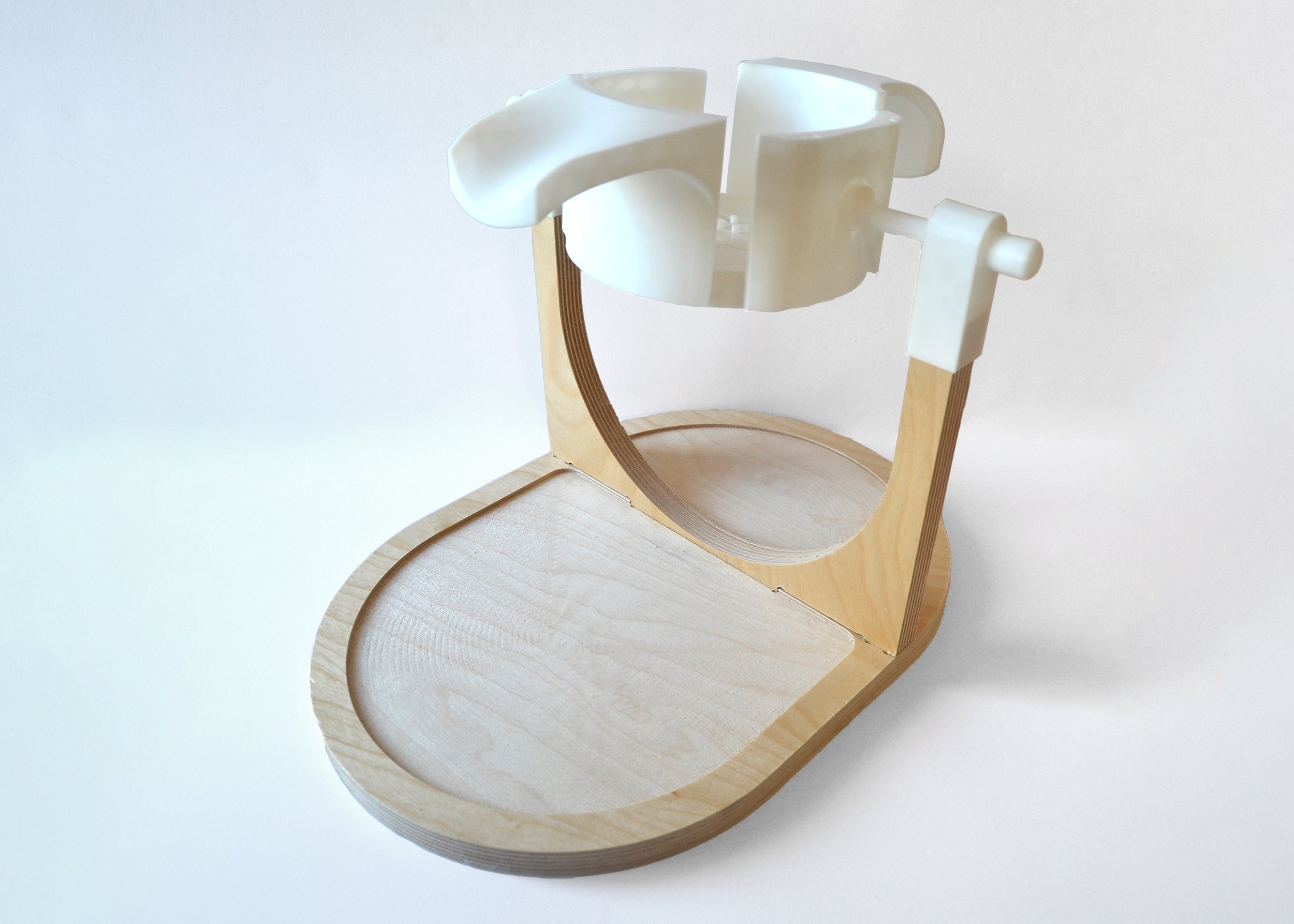

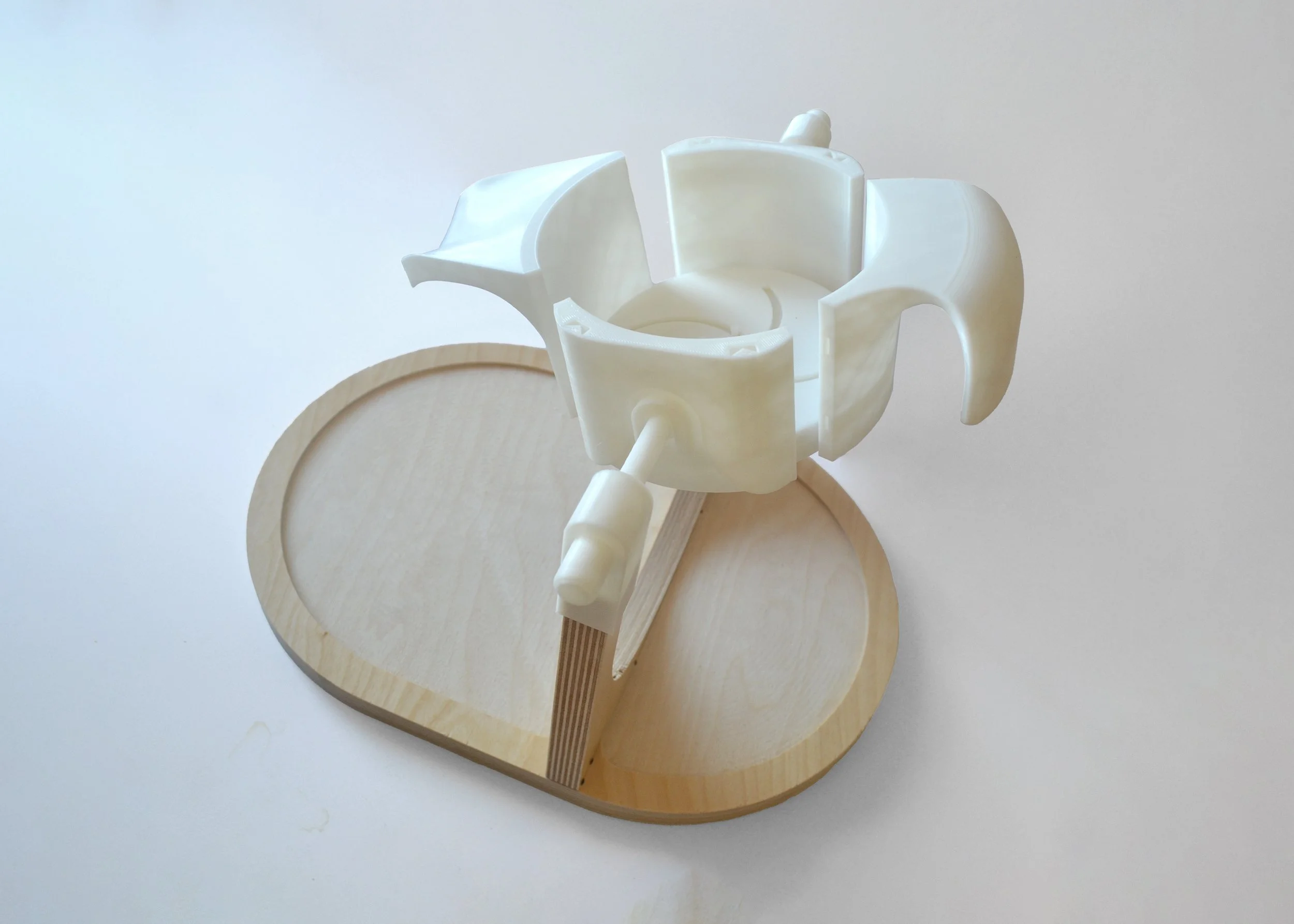

An Extra Set of Hands in the Accessible Kitchen

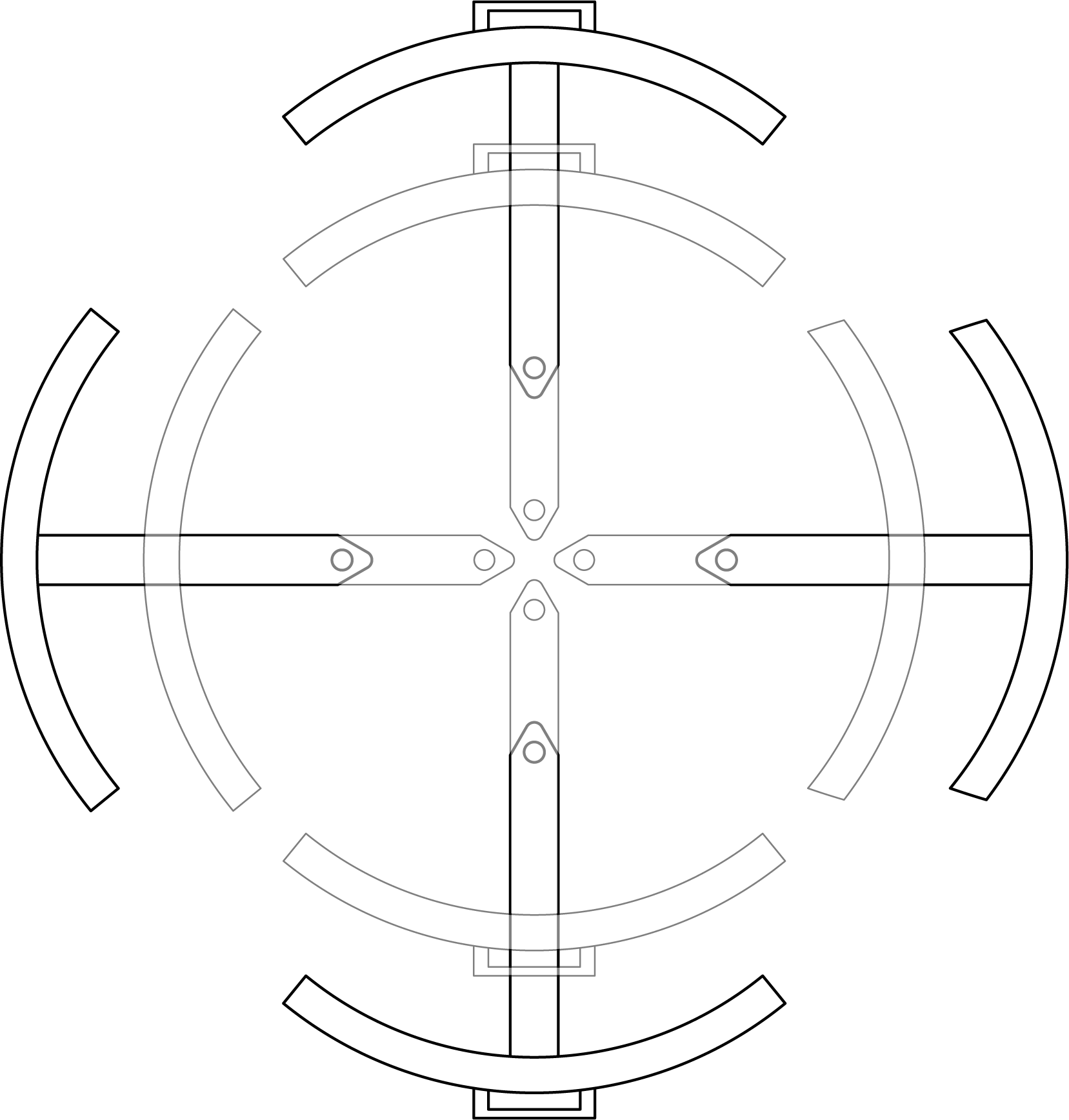

adjustable fit for different size bowls and cookware

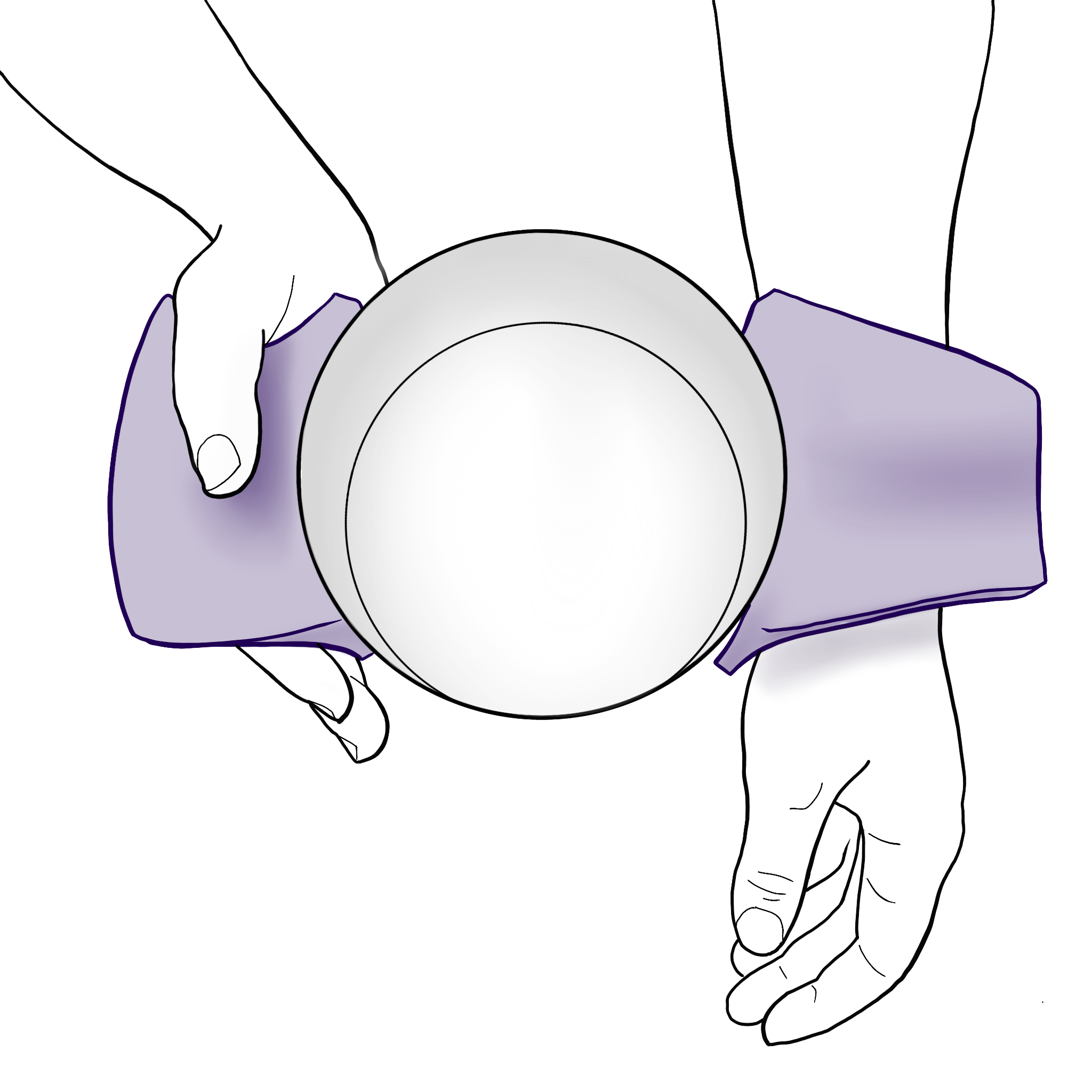

gripless handles for joint comfort
1

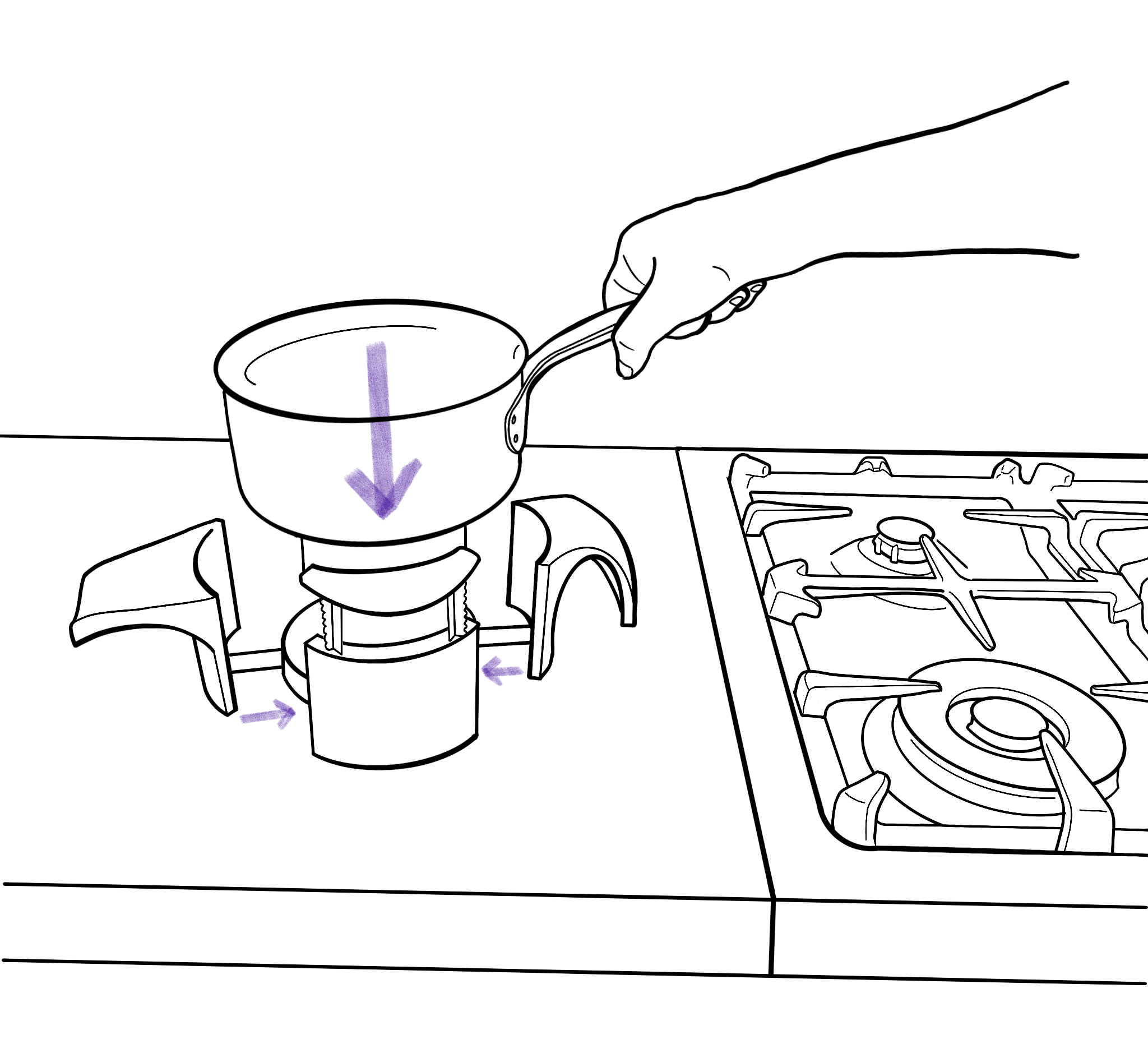

Place Pot into Holder
2

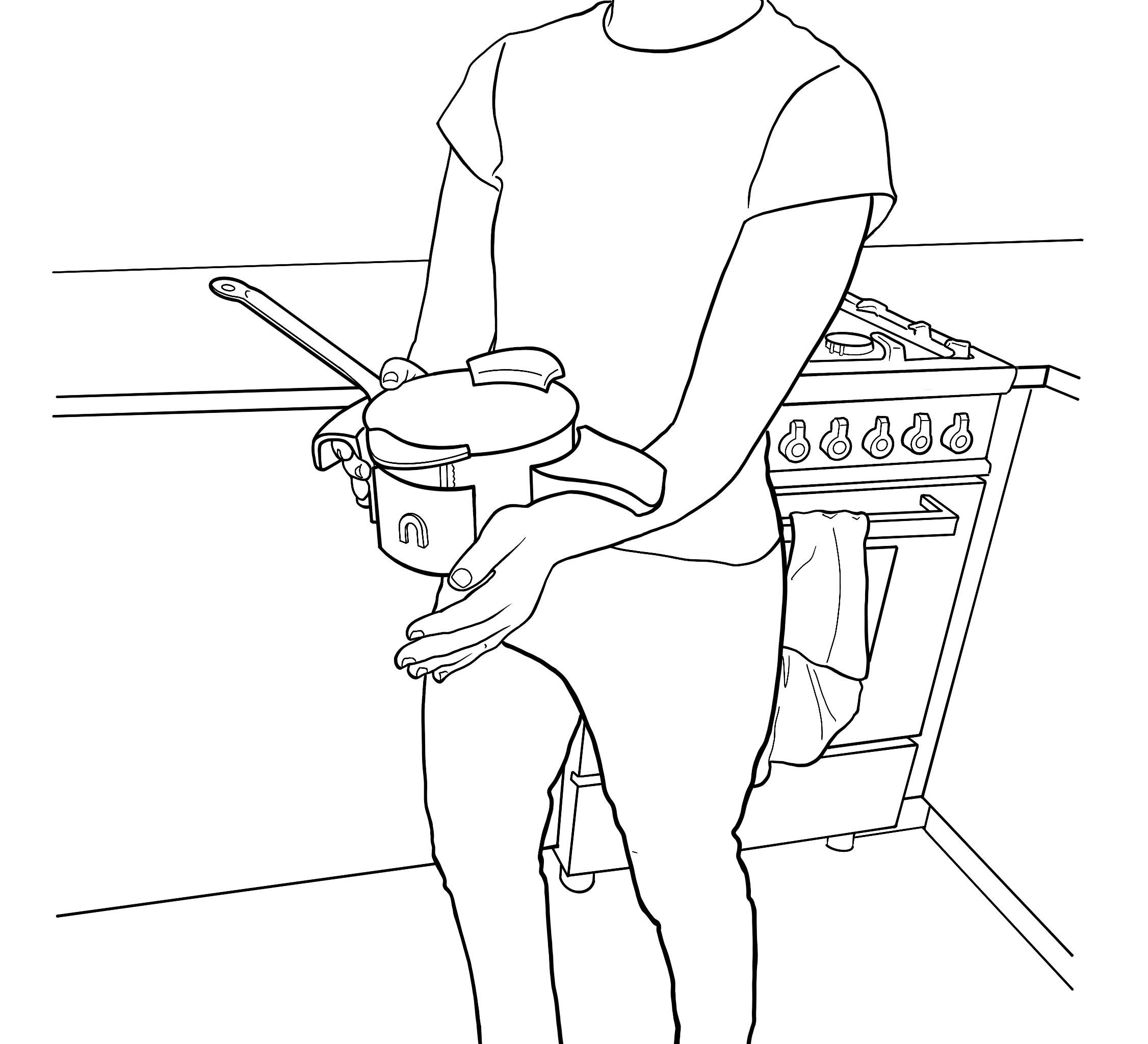

Carry Holder to Stand
3

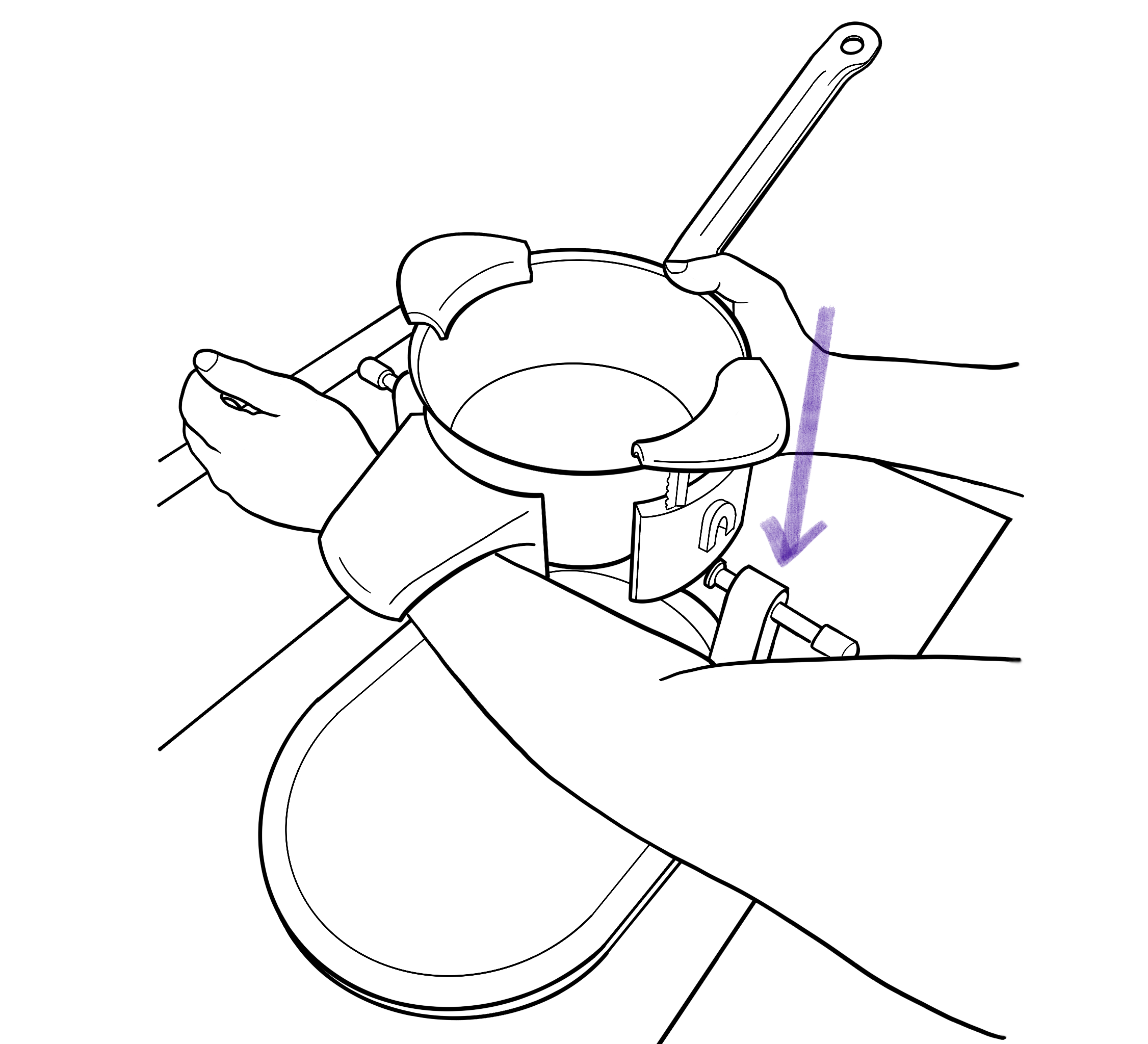

Place Holder Onto Stand
4

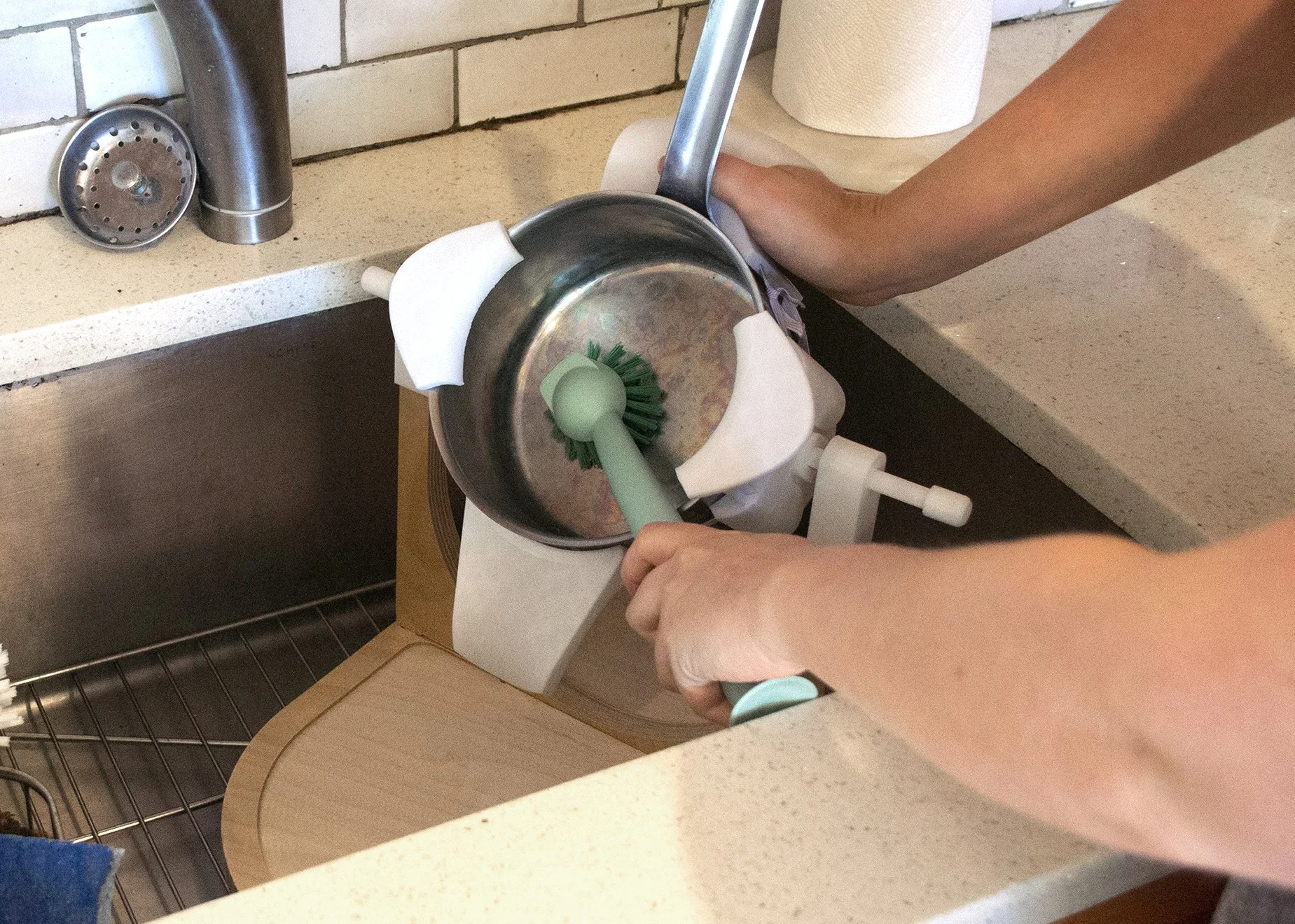

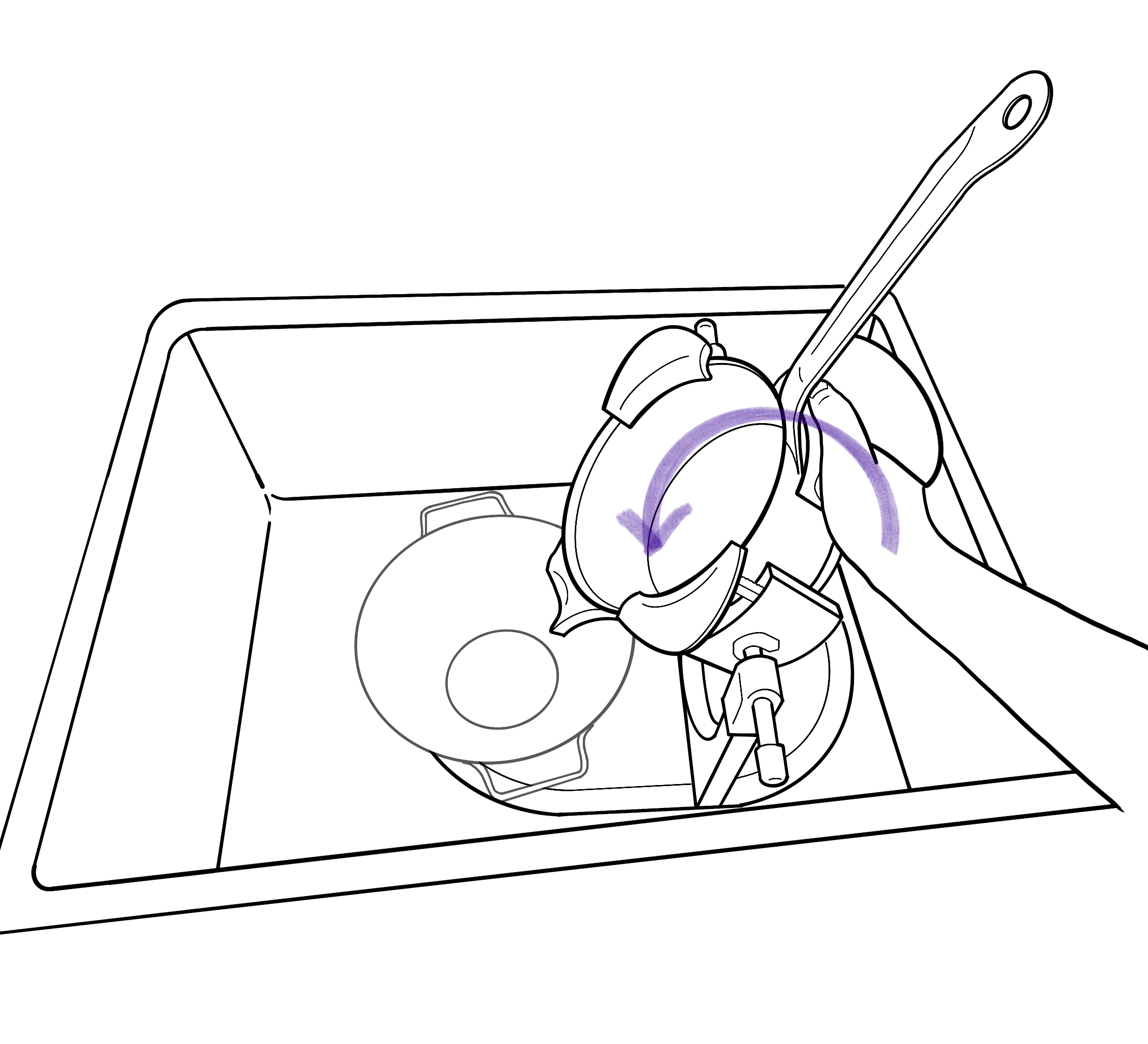

Tilt + Perform Kitchen Task
